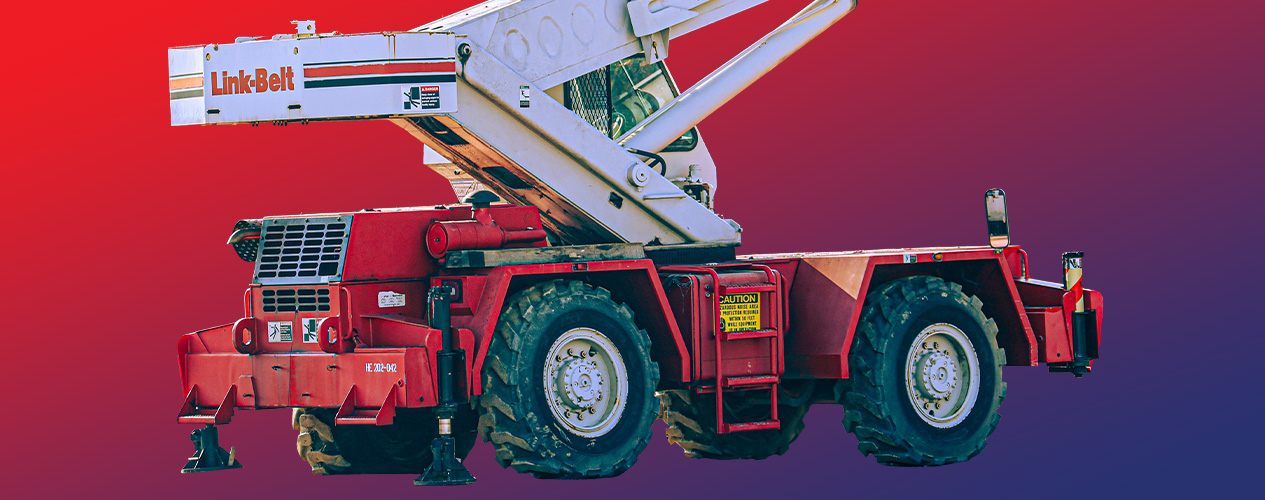

Link-Belt RTC-8050 Rough Terrain Crane

Link-Belt RTC-8050 Rough Terrain Crane

The Link-Belt RTC-8050 Series II rough terrain cranes offer remarkable control, reliability, and capacity performance for all lifting and loading applications. The Link-Belt RTC-8050 is a rough terrain crane with a 50-ton maximum lift capacity. It has a 110-foot, four-section, hydraulic telescoping boom with a quick reeve boom head. With optional extensions, the maximum tip height is 168 feet.

The RTC-8050 with 172' (52.43 m) of on-board tip height is specifically designed to give contractors and rental house companies the best equipment value in the 50-ton RT class. The RTC-8050 uses a Confined Area Lifting Capacity (CALC) system, allowing it to work more effectively in small spaces. Link-Belt also offers the RTC-8050-II, which has several upgrades, including the "A-max" boom mode for precise operation and BOSS, an exclusive boom stiffening system.

Specifications

Specification Value
Max Capacity (US Tons) 50
Boom (ft) 36-110
Fixed Jib (m) 29-51
Maximum Load Radius (ft) 100
Engine Cummins 6CT8.3

Features

  • Two Extend Modes: A-max extension mode enhances structural capability, while the standard mode is fully synchronized for normal operation.
  • Powerful Hydraulics: The RTC-8050 Series II has a hydraulic system providing smooth and precise hoisting. The piston winch motor ensures smooth lifting, while the main and auxiliary winches are equally matched in size and performance.
  • Multiple Steering Modes: Includes independent front, independent rear, combination, and "crab" steering modes for flexible movement.
  • Operator Comfort: Spacious cab with extra-large windows for visibility. All gauges, switches, and controls are within the operator’s forward line of sight.
  • Full Power Boom: A four-section, 35'6" – 110'0" (10.82 – 33.53 m) fully synchronized telescoping boom.
  • Lightweight Nylon Head Sheaves: Reduces overall machine weight and increases lift capacities.
  • Quick Reeve Boom Head: Allows wire rope to be easily reeved over the boom head.
  • Hammerhead Boom Nose: Enables operation at high boom angles.
  • Stowable Lattice Type Fly: 34' offsettable (1°, 15°, or 30° offset) with lugs for adding a second section.
  • Two-Mode Boom Extension: Standard full-power synchronized mode or A-max mode for increased capacity at shorter extensions.
  • Rated Capacity Limiter (RCL): Microguard 434 graphic audio-visual system continuously monitors crane metrics.
  • Operator-Defined Area Alarm: Allows the operator to set boundaries to avoid obstacles.
  • Confined Area Lifting Capacities (CALC) System: Enables operation in restricted spaces.

Benefits

  • Versatility: Suitable for construction, industrial, and oil and gas applications.
  • Reliability: Built with high-quality components for long-term durability.
  • Ease of Use: User-friendly controls and simplified hydraulic routings.
  • Safety: Features a rated capacity limiter and an operator-defined area alarm.
  • Maneuverability: Four-wheel drive and four-wheel steering.
  • Automotive-Type Wire Harnesses: Sealed relays and connectors enhance reliability.
  • "Redundant" Oil Seal Technology: Used in boom hoist, extend/retract, and outrigger cylinders to improve sealing performance.
  • Time-Proven Boom Design: Exclusive Link-Belt design enhances capacity, tip height, and reliability.
  • Pre-Painted Components: Improves durability and reduces paint chipping.
  • Independent Steering Controls: Front steer, four-wheel coordinated steer, and "crab" steering.
  • Easy Maintenance Access: Fold-up steps, handrails, and a swing-out engine hood for accessibility.
  • Worldwide Distribution Network: Provides outstanding customer support and high resale value.

Applications

  • Construction: Lifting steel beams, setting precast concrete panels, erecting tower cranes.
  • Industrial: Loading/unloading trucks, moving heavy machinery, and maintaining plant equipment.
  • Oil and Gas: Lifting drilling rigs, setting pipelines, and refinery construction.
  • Heavy Equipment Movement: Ideal for moving large machinery over difficult terrain.
  • Indoor Lifting: Works in confined spaces.
  • Unpredictable Weather Conditions: Designed for rough terrains including mud, rubble, and other challenging surfaces.

Considerations for Use

  • The RTC-8050 cannot be driven on freeways.
  • Outriggers are required for operation.
  • Designed for confined work areas where full outrigger extension is not possible.

Conclusion

The Link-Belt RTC-8050 is a highly capable rough terrain crane designed for construction, industrial, and oil and gas applications. It provides advanced features like "A-max" boom mode, powerful hydraulics, and multiple steering modes for superior maneuverability. Operator comfort is emphasized with a spacious cab, ergonomic controls, and excellent visibility.

Safety is a priority, with advanced monitoring systems such as the Rated Capacity Limiter (RCL) and Operator-Defined Area Alarm. The RTC-8050 is built with high-quality materials, ensuring durability and reliability. Link-Belt’s continuous quality improvements and worldwide distribution network make this crane a valuable investment.

For those needing even more features, the RTC-8050-II model includes upgrades like the BOSS boom stiffening system.
