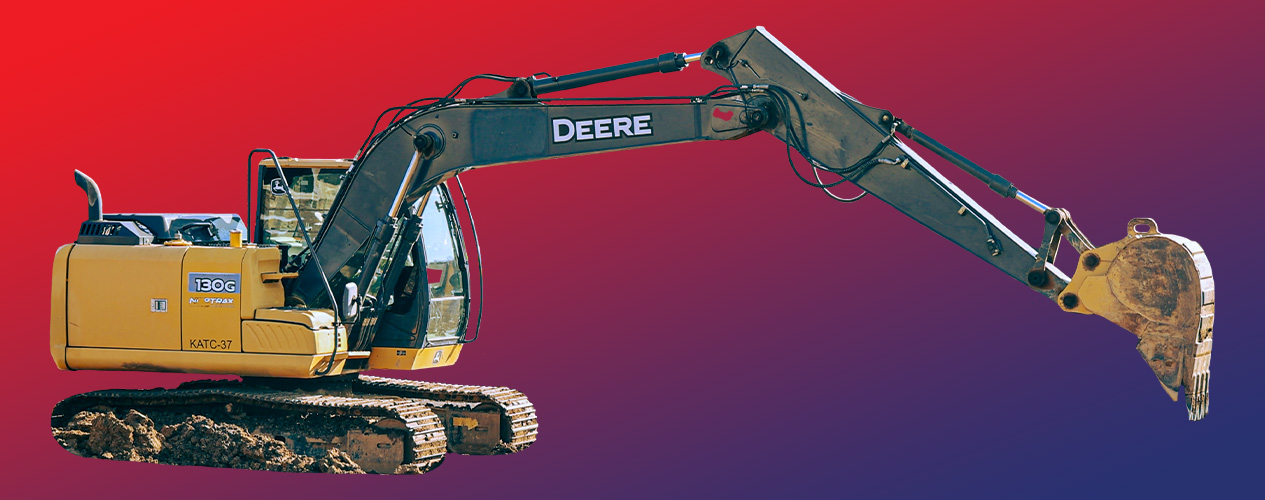

John Deere 130G Excavator
The John Deere 130G excavator is a mid-size machine designed for various earth-moving tasks. It is widely used in construction, landscaping, and utility work due to its versatility, power, and fuel efficiency. This article provides a comprehensive overview of its specifications, features, and applications.
Specifications
| Specification | Value |
|---|---|
| Net Power | 73 kW (98 hp) |
| Max. Digging Depth | 5.54 m (18 ft. 2 in.) |
| Operating Weight | 13,407 kg (29,531 lb.) |
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech™ PWS 4.5L |
| Emission Rating | Tier 4 |
| Number of Cylinders | 4 |
| Displacement | 4.5 L (275 cu. in.) |
| Maximum Travel Speed | 5.5 kph (3.4 mph) |
| Maximum Digging Reach | 8,770 mm (28 ft. 9 in.) |
Features and Benefits
Engine
- Powered by a 4.5L John Deere PowerTech™ diesel engine delivering 73 kW (98 hp).
- Meets EPA Final Tier 4 (FT4)/EU Stage IV emissions standards.
- Provides sufficient power for demanding applications.
Hydraulics
- Equipped with John Deere's Powerwise™ III hydraulic management system for optimized fuel efficiency.
- Three productivity modes: High Productivity, Power, and Economy, allowing the operator to choose the best setting for the job.
Durability
- Built with a thick-plate single-sheet mainframe and box-section track frames for maximum durability.
- Industry-exclusive double-seal swing bearing enhances reliability.
- The boom, arm, and mainframes are warranted for three years or 10,000 hours.
Operator Comfort
- Spacious, comfortable cab with excellent visibility.
- Sculpted mechanical-suspension high-back seat for reduced fatigue.
- Ergonomic short-throw pilot levers for precise control.
- Multi-language LCD monitor with a rotary dial for easy operation.
Serviceability
- Large hinged doors provide easy access to service components.
- Lube banks, filters, and checkpoints are grouped for convenient maintenance.
Fuel Efficiency
- Auto-idle reduces engine speed when hydraulics are not in use.
- Auto-shutdown conserves fuel and lowers operating costs.
Dimensions
| Dimension | Value |
|---|---|
| Transport Length Mono Boom | 7,710 mm (25 ft. 4 in.) |
| Transport Height - Maximum | 2,870 mm (9 ft. 5 in.) |
| Overall Undercarriage Width | 2,690 mm (8 ft. 10 in.) |
| Track Length On Ground | 2,880 mm (9 ft. 5 in.) |
| Overall Undercarriage Length | 3,580 mm (11 ft. 9 in.) |
| Tailswing Radius | 2,190 mm (7 ft. 2 in.) |
| Ground Clearance | 410 mm (16 in.) |
Applications
- Site Development: Ideal for land clearing, foundation excavation, and grading.
- Earthmoving: Efficient for trench digging, truck loading, and material moving.
- Landscaping: Useful for pond excavation, tree planting, and rock moving.
- Utility Work: Suitable for pipeline installation, trench digging for cables, and sewer repairs.
- Demolition: Can be used for tearing down structures and debris removal.
Versatility with Attachments
The John Deere 130G’s compatibility with various attachments enhances its versatility. Some of the attachments include:
- Hammers: For breaking concrete or rock.
- Plate Compactors: For compacting soil in trenches, slopes, and excavations.
- Rotary Cutters: For clearing brush and trees.
- Mulching Heads: For grinding vegetation and producing mulch.
- Tiltrotators: For increased precision and maneuverability in confined spaces.
- Augers: For drilling holes for posts, foundations, and utility work.
Pricing
The price of a John Deere 130G excavator varies based on the year, usage, condition, and included attachments. Estimated price range:
- Lowest Price: $72,500
- Highest Price: $154,900
Conclusion
The John Deere 130G excavator is a powerful and versatile machine well-suited for construction, landscaping, and utility work. Its fuel-efficient engine, advanced hydraulics, and durable design contribute to its productivity and cost-effectiveness. The availability of attachments further enhances its versatility, allowing it to handle tasks such as demolition, land clearing, and material handling.
While the 130G offers numerous benefits, potential buyers should consider factors such as initial cost, maintenance requirements, and the specific needs of their applications. Overall, the John Deere 130G excavator is a reliable and efficient investment for various earth-moving projects.
