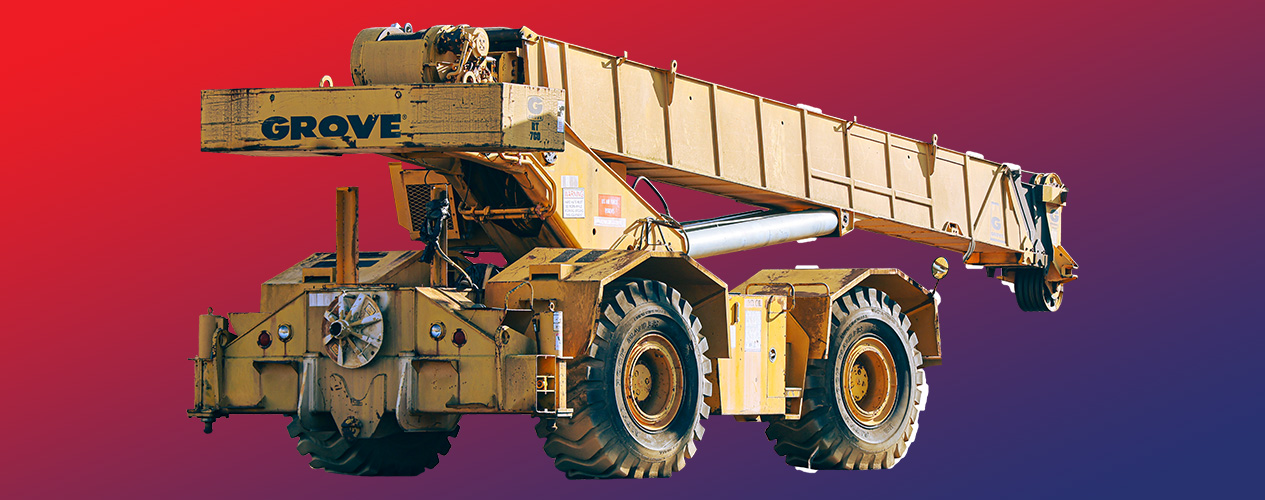

Grove RT760E Rough Terrain Crane
The Grove RT760E rough terrain crane is designed for versatile lifting operations in challenging environments. With a strong lifting capacity, advanced safety features, and operator-friendly design, it is widely used in construction, industrial, and oil and gas applications.
Specifications
| Specification | Measurement |
|---|---|
| Maximum Capacity | 60 tons |
| Boom Length | 36-110 ft |
| Maximum Tip Height | 147 ft |
| Jib Length | 33-56 ft |
| Maximum Load Radius | 100 ft |
| Engine | Cummins QSB6.7L Tier IV |
| Drive Chain | 4x4 |
| Maximum Travel Speed | 23 mph |
| Maximum Gradeability | 75% |
| Number of Winches | 2 |
| Counterweight | 12,865 lbs |
Dimensions
| Dimension | Measurement |
|---|---|
| Transport Length | 44.2 ft |
| Transport Width | 10.91 ft |
| Transport Height | 11.9 ft |
| Wheelbase | 13.34 ft |
| Width with Outriggers Extended | 23.34 ft |
Features and Benefits
| Feature | Benefit |
|---|---|
| MEGAFORM™ boom design | Provides exceptional strength-to-weight ratio for increased lifting capacity. |
| Quick-reeve boom nose and hook block | Facilitates efficient rigging and setup. |
| Pinned-on counterweight | Allows easy installation and removal, reducing setup time. |
| E Series cab | Improves operator visibility and comfort. |
| PAT I-Flex 5 Load Moment Indicator (LMI) system | Ensures safe lifting by providing real-time crane load data. |
| Four-wheel multi-mode steering | Enhances maneuverability with front, rear, crab, and coordinated steering modes. |
| Integrated outrigger monitoring system | Provides real-time feedback on outrigger deployment. |
| Automatic swing brake | Secures positioning during lifting operations. |
| Hydraulic disc brakes | Improved reliability over air or air-over-hydraulic drum brakes. |
| Inverted outrigger jacks | Protects cylinder rods from contaminants, increasing longevity. |
| Hot water cab heater | Enhances operator comfort in cold environments. |
| Large wear pads | Provides better boom alignment when telescoping, allowing for greater lifting capacities. |
| Graphical LMI with Work Area Definition | Displays crane configuration and outrigger positions for safer lifting. |
| Pick-and-carry charts | Assists in planning and executing pick-and-carry operations. |
| Tier IV engine | Environmentally friendly, reducing carbon emissions and NOx output. |
Key Technologies
MEGAFORM™ Boom Design
The MEGAFORM™ boom design enhances the crane's lifting capabilities by using a U-shaped cross-section, providing a better strength-to-weight ratio than traditional rectangular booms.
PAT I-Flex 5 Load Moment Indicator (LMI) System
This system provides real-time load data, including boom angle, length, radius, and tip height. It prevents overloading and ensures safe lifting operations.
Applications
- Construction: Lifting and placing heavy materials, including steel beams and prefabricated components.
- Infrastructure: Used in bridge construction, road building, and large-scale projects.
- Industrial: Supports plant maintenance, equipment installation, and material handling.
- Oil and Gas: Moves heavy equipment and materials on oil rigs and pipeline sites.
- Pick-and-Carry Operations: Excels in lifting and transporting loads across job sites due to its maneuverability and stability.
Pricing
The price of a Grove RT760E crane varies based on factors such as age, condition, and features. Estimated price range:
- Lowest Price: $85,000
- Highest Price: $165,000
Conclusion
The Grove RT760E is a powerful and versatile rough terrain crane offering a 60-ton maximum capacity, 110-foot boom length, and 147-foot maximum tip height with a jib. Its four-wheel multi-mode steering enhances maneuverability, while advanced safety features such as the PAT I-Flex 5 LMI system provide real-time load monitoring for safe lifting operations.
This crane is well-suited for construction, infrastructure, industrial, and oil and gas projects. Its ability to handle pick-and-carry operations makes it highly valuable for job sites requiring both lifting and transport. The RT760E's robust design, technology integration, and competitive pricing make it an excellent choice for a variety of heavy lifting needs.
