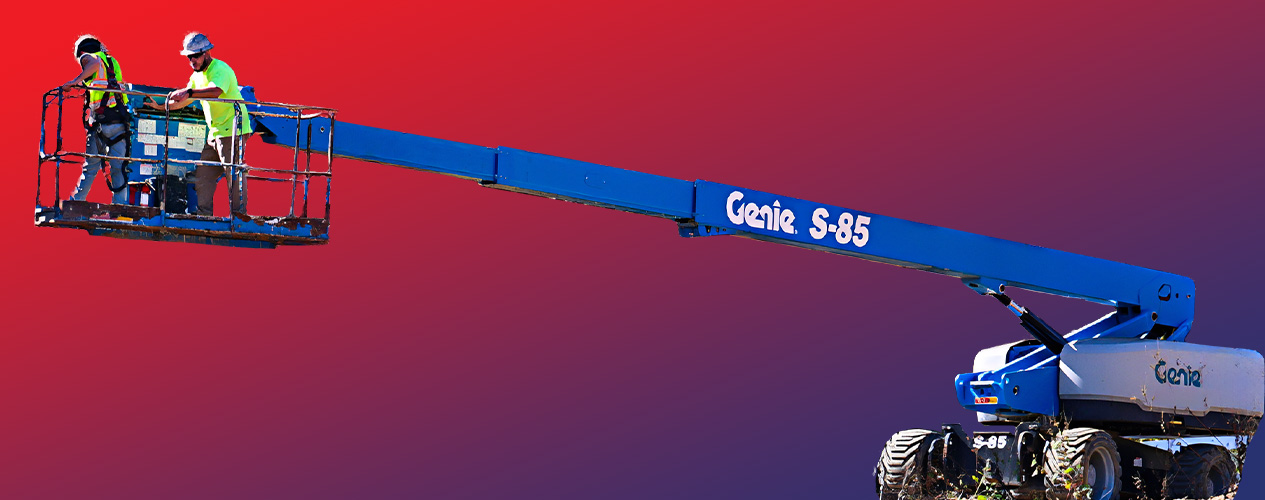

Genie S-85 Telescopic Boom Lift
1. Overview
The Genie S-85 is a telescopic boom lift featuring one or more boom sections that extend outward in a straight line. This design provides greater horizontal outreach than other aerial platforms, making it ideal for various construction and industrial applications that require increased reach.
With a maximum working height of 91 feet and a maximum horizontal reach of 74 feet 6 inches, the Genie S-85 is well-suited for tasks such as:
- Reaching high ceilings
- Working on tall structures
- Accessing hard-to-reach areas
2. Specifications
| Specification | Value |
|---|---|
| Max Working Height | 91 ft |
| Max Horizontal Reach | 74 ft 6 in |
| Below Ground Reach | 8 ft 8 in |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted |
| Machine Width | 8 ft 2 in |
| Machine Length | 41 ft 9 in |
3. Key Features
- Dual Lift Capacity: 660-lb unrestricted and 1,000-lb restricted for heavier lift tasks.
- Virtual Pivot Primary Boom: Aligns the center of gravity for a lower machine weight.
- XC™ E Electric Model: Offers low-noise and no-emissions operation for environmentally sensitive sites.
- Advanced Control System: Provides smooth and precise operation, even at high elevations.
4. Dealers
MacAllister Machinery is a full-service Genie dealer offering an extensive selection of aerial lift equipment, including:
- Scissor lifts
- Telescopic boom lifts
- Articulated boom lifts
- Personnel lifts
- Towable lifts
5. Safety Features
- Tilt and Descent Alarms: Alerts when the machine tilts beyond a safe angle or descends too quickly.
- Anti-Restart Protection: Prevents accidental restarting after shutdown.
- Automatic Engine Fault Shutdown: Stops the engine if a fault is detected.
- Lift Guard™ Contact Alarm: Activates an alarm and warning light if the operator contacts the platform control panel.
- Chassis Tilt Sensor: Adjusts the axle position for stability in hard-to-reach areas.
- Fall Arrest Bar: Allows the boom lift to serve as a fall arrest anchor when working from adjacent structures.
6. Maintenance Requirements
Regular maintenance is essential to ensure safe and efficient operation. Recommended maintenance includes:
- Regular Inspections: Check tires, wheels, boom sections, hydraulics, and electrical components for damage or wear.
- Fluid and Filter Changes: Engine oil, hydraulic fluid, and filters should be changed per manufacturer guidelines.
- Lubrication: Regularly lubricate boom sections, turntable, and axles to reduce friction and extend lifespan.
- Battery Maintenance: Check battery charge levels and clean corrosion from terminals.
The Genie S-85 has been redesigned with serviceability in mind, featuring:
- Sequenced Boom Assembly: Replaces shotgun cylinders with a simpler, lighter-weight system.
- Hydraulic Hard Lines: Improves routing and extends the lifespan of components.
7. Optional Features
- Genie Lift Power™ Generator: Welder-ready system for additional power needs.
8. Warranty
Genie offers a standard warranty on the S-85 telescopic boom lift. Warranty terms may vary by region and dealer. Customers should contact their local Genie dealer for details.
9. Pricing
Pricing information for the Genie S-85 was not available in the provided data. Interested buyers should consult a Genie dealer for a quote.
10. User Reviews
The Genie S-85 has received positive reviews for its performance, reliability, and ability to handle rough terrain. Users appreciate:
- High reach capability
- Stable platform accommodating up to three people with equipment
- Serviceability and ease of maintenance
11. Competitor Comparison
| Model | Manufacturer | Max Working Height | Max Horizontal Reach | Platform Capacity |
|---|---|---|---|---|
| S-85 XC | Genie | 91 ft | 74 ft 6 in | 660 lb Unrestricted, 1,000 lb Restricted |
| 800S | JLG | 80 ft | 75 ft | 600 lb |
| SJ63 T | Skyjack | 69 ft 10 in | 49 ft 6 in | 600 lb |
| HT85 RTJ O | Haulotte | 85 ft 1 in | 67 ft 1 in | 500 lb |
| 400S | Snorkel | 46 ft 5 in | 36 ft 1 in | 500 lb |
12. Conclusion
The Genie S-85 is a reliable and versatile telescopic boom lift suited for construction and industrial applications. It offers an impressive reach, high platform capacity, and strong safety features. The availability of an electric model makes it a viable choice for environmentally sensitive workplaces.
