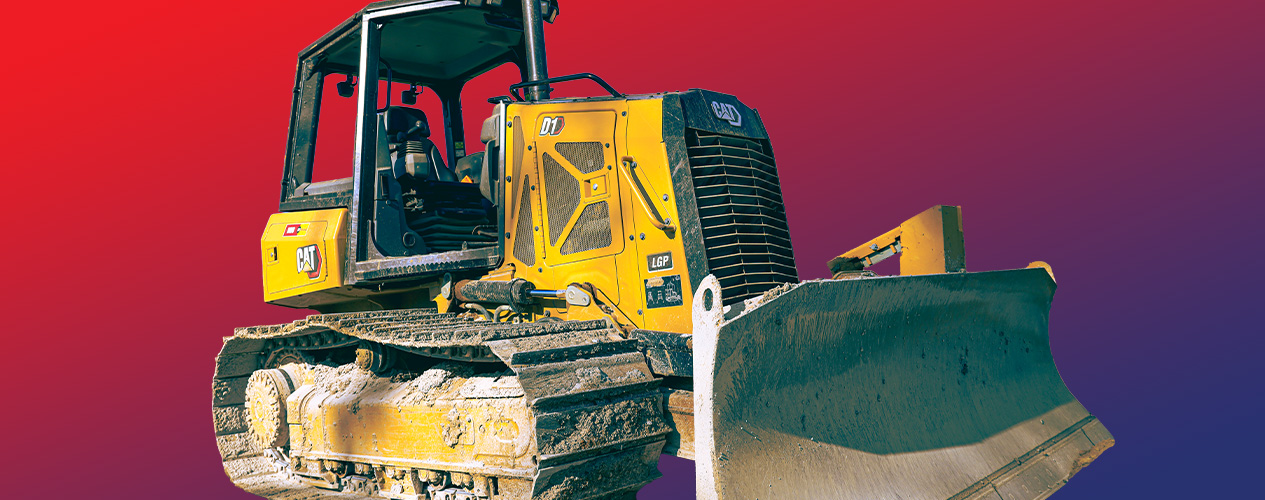

Caterpillar D3 LGP Bulldozer

Caterpillar D3 LGP Bulldozer

1. Executive Summary

The Caterpillar D3 LGP (Low Ground Pressure) bulldozer is a compact dozer designed to operate effectively on soft, wet, or unstable terrain. With advanced traction, low ground pressure, and enhanced stability, this bulldozer minimizes ground disturbance while maintaining productivity. Featuring a robust powertrain, operator assist technologies, and durable undercarriage options, the D3 LGP is well-suited for forestry, construction, environmental restoration, and pipeline projects.

2. Introduction to Low Ground Pressure Bulldozers

Low Ground Pressure (LGP) bulldozers are designed for soft or unstable ground where standard bulldozers struggle. By increasing ground contact area through wider tracks, LGP dozers reduce ground pressure, improving flotation and traction.

Key Advantages:

  • Reduces soil compaction – Essential for agriculture and environmental work.
  • Better stability – Works on inclines and uneven terrain.
  • Enhanced flotation – Operates efficiently in mud, swamps, and loose soil.
  • Minimized ground disturbance – Suitable for wildlife habitats and restoration projects.

Primary Industries Using LGP Bulldozers:

  • Forestry: Thinning operations, creating forest paths.
  • Construction: Working on soft ground.
  • Pipeline & Energy: Installing pipelines in wet conditions.
  • Environmental Restoration: Managing invasive species, preparing land for wildlife.

3. Caterpillar D3 LGP Technical Specifications

Category Specification
Engine ModelCat C3.6 (4-cylinder turbocharged diesel)
Net Power104 HP (77.6 kW) @ 2,200 RPM
Fuel TypeUltra Low Sulfur Diesel (ULSD)
Operating Weight21,369 - 21,810 lbs (9,693 - 9,893 kg)
Track Gauge67.9 - 73 inches (1,750 - 1,860 mm)
Ground Clearance13 inches (332 mm)
Blade Capacity3.06 yd³ (2.34 m³)
Maximum Blade Height30.2 inches (767 mm)
Hydraulic Flow Rate17.2 GPM (65 LPM)
Fuel Tank Capacity51.5 gallons (195 L)
Maximum Forward Speed5.6 mph (9 km/h)
Maximum Reverse Speed6.2 mph (10 km/h)

4. Key Features and Operator Assist Technologies

Operator Assist Features:

  • Stable Blade Lift and Tilt – Automatically smooths surfaces.
  • Blade Load Monitor – Adjusts blade load in real-time for efficiency.
  • Traction Control – Reduces track slip.
  • AutoCarry™ – Raises and lowers blade to optimize pushing capacity.

Grade Control Technologies:

  • Cat Grade with 3D – GPS-controlled grading.
  • Slope Assist™ – Automatically adjusts blade position.
  • Compatible with Trimble, Topcon, and Leica systems.

5. Applications

  • Forestry – Thinning operations, clearing paths.
  • Pipeline Work – Wet soil applications.
  • Environmental Restoration – Managing delicate ecosystems.
  • Construction – Working in soft-ground areas.

6. Performance Review and Comparisons

User Feedback:

  • Better balance than competitors like Yanmar and Bobcat.
  • Smoother ride than Case dozers due to extra track rollers.
  • Superior blade design allows greater material movement.

7. Fuel Efficiency and Operating Costs

  • Lowest fuel consumption in its size class.
  • ECO Mode reduces fuel use by 20%.
  • Estimated monthly fuel cost: $1,000.

8. Conclusion and Recommendations

The Caterpillar D3 LGP is a versatile and fuel-efficient bulldozer built for soft terrain applications. It is a top choice for forestry, environmental restoration, and pipeline projects.
