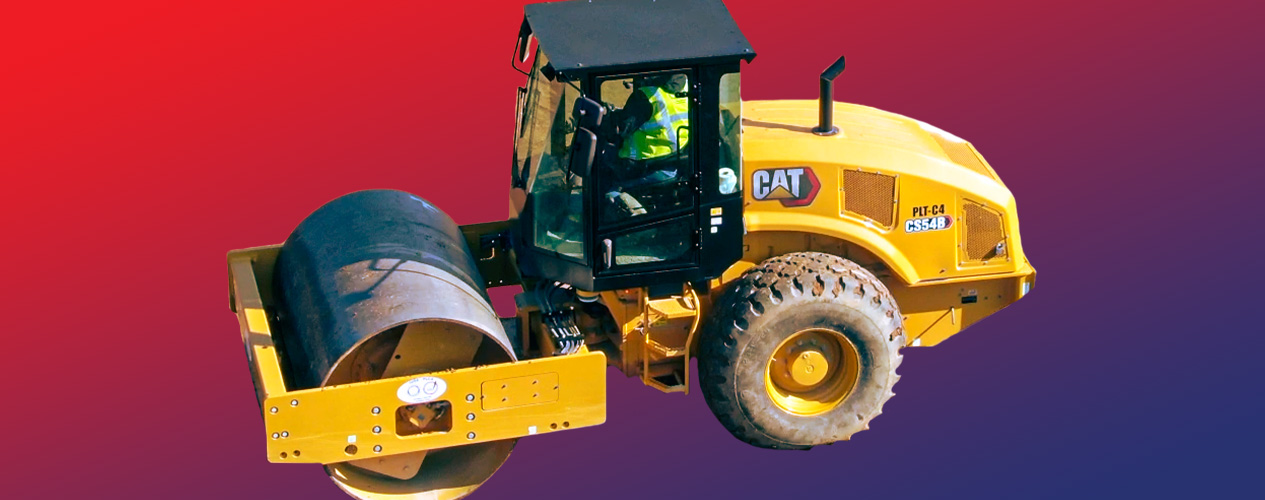

Caterpillar CS54B Vibratory Soil Compactor

Caterpillar CS54B Vibratory Soil Compactor

The Caterpillar CS54B Vibratory Soil Compactor is designed for high-performance compaction of granular soils. Powered by a 131 HP Cat C4.4 engine with ACERT technology, it delivers exceptional efficiency and durability for a variety of earthmoving and construction applications.

Specifications

Specification Measurement
Operating Weight (with cab)23,265 lbs
Compaction Width84 in
Drum Width84 in
Drum Diameter60.4 in
Overall Length19.17 ft
Overall Width7.58 ft
Wheel Base9.58 ft
Ground Clearance17.4 in
Turning Radius (inside drum edge)12.08 ft
Maximum Travel Speed6.8 mph
Fuel Tank Capacity64 gal (US)
Nominal Amplitude (high)0.075 in
Centrifugal Force (minimum)29,900 lbs
Centrifugal Force (maximum)52,600 lbs
Tires23.1 x 26

Applications

The Caterpillar CS54B Vibratory Soil Compactor is used across multiple industries and construction projects, including:

  • Agriculture
  • Construction
  • Earth Moving
  • Forestry
  • Governmental Projects
  • Landscaping
  • Mining
  • Power Infrastructure
  • Quarry & Aggregate
  • Waste Management
  • Residential Projects
  • Building Construction
  • Pipelaying and Trenches
  • Golf Courses
  • Parks
  • Road Construction
  • Larger Earth Fills
  • Aggregate Bases
  • Agriculture and Irrigation Projects
  • Airport Construction
  • Railway Foundations
  • Dams and Large Embankment Fills
  • Rock Fills
  • Mining Applications (Drying Beds, Waste Tanks, Embankments)
  • Recycling
  • Rock Crushing
  • Land Reclamation (Dredging)
  • Site Preparation
  • Trench and Slope Work

Key Features and Benefits

  • Comfortable and Ergonomic Operator Station: Features a pivoting seat with an integrated multifunction LCD display and control console, offering outstanding visibility and low noise levels.
  • Exceptional Propel System: Built with the exclusive Cat dual pump propel system, ensuring superior gradeability and traction in both forward and reverse motion.
  • Low Maintenance Design: Maintenance-free hitch bearings and extended service intervals for the vibratory and hydraulic systems help reduce downtime.
  • Enhanced Compaction Performance: More weight at the drum and greater amplitude for better soil compaction.
  • Auto Vibe Function: Ensures consistent, high-quality compaction results.
  • Cat Compaction Control: Allows operators to determine when compaction has been completed to meet specifications, improving efficiency.
  • Dual Amplitude, Single Frequency: Two amplitude settings optimize compaction in different soil types.
  • Dual Pod-Style Eccentric Weight Housings: The Cat pod-style vibratory system enhances compaction force and is nearly maintenance-free.
  • Eco-mode: Reduces fuel consumption without sacrificing performance.
  • Automatic Speed Control: Enables the operator to select a maximum working speed for uniform compaction.

Optional Features

  • Padfoot Shell Kit: Converts the CS54B for compacting cohesive and semi-cohesive materials.
  • Variable Frequency System: Provides adjustable vibration frequencies for improved performance in varying soil conditions.
  • Polyurethane Drum Scrapers: Offer increased durability and reduced wear compared to steel scrapers.
  • Steel Rear-side Drum Scraper: Provides additional scraping action for cleaner drum operation.
  • Bio-oil Factory Fill: Environmentally friendly hydraulic oil option.
  • Sun Visor: Adds operator shade in sunny conditions.
  • Deluxe High-back Air-ride Pivoting Seat: Increases comfort and support for long working hours.
  • Upgraded Halogen Light Package: Improves visibility in low-light environments.
  • Cab Internal Rear View Mirrors: Enhances operator awareness and safety.
  • Cab Internal Roll-down Sun Screen: Reduces glare and enhances comfort.
  • Product Link: Enables remote monitoring of machine location, fuel consumption, and operating hours.
  • Additional Rear View Mirrors: Further improves operator visibility and awareness.

Conclusion

The Caterpillar CS54B Vibratory Soil Compactor is a high-performing machine designed for efficient soil compaction across multiple industries. Its dual pump propel system, enhanced compaction performance, and maintenance-free components make it a valuable investment for construction, roadwork, and earthmoving projects.

With features like Cat Compaction Control, Auto Vibe Function, and Eco-mode, operators can achieve precise compaction with reduced fuel consumption. The optional Padfoot Shell Kit further extends its capabilities, making it ideal for a variety of soil types.

Overall, the CS54B is a durable, operator-friendly, and cost-effective solution for compaction needs, offering high productivity and reduced operating costs.
