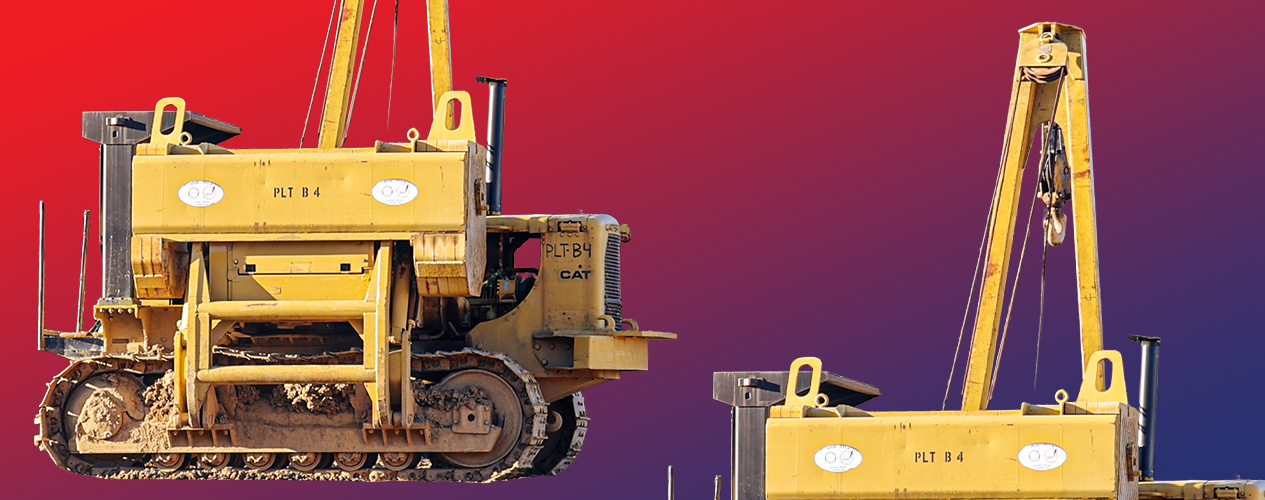

Caterpillar 561C Pipelayer
The Caterpillar 561C Pipelayer is a powerful and versatile machine designed for the demanding needs of the pipeline industry. With its robust construction, advanced features, and reliable performance, the 561C remains a popular choice for pipeline contractors even today. This document provides a comprehensive overview, including specifications, features, capabilities, comparisons to other pipelayers, and acquisition details.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Caterpillar |
| Model Number | 561C |
| Series | 85H (US) |
| Description | Pipelayer - Engine S/N, Lift Capacity 40,000 lbs, Direct Drive, D333 105HP Engine, 74" Gauge |
| Weight | 32,500 lbs |
| Length | 12' 6" |
| Width | 10' 6" |
| Height | 10' |
| Years of Manufacture | 1976 |
| Engine Manufacturer | Caterpillar |
| Engine Model | D333 |
| Engine Horsepower | 105 HP |
| Steering | Clutch Brake Steering |
Features and Capabilities
Engine and Powertrain
- The Caterpillar D333 engine delivers 105 HP, providing robust power for pipeline tasks.
- Housed in a noise-proof enclosure, reducing noise pollution on job sites.
Lifting and Handling
- Maximum lift capacity of 40,000 lbs, allowing it to handle heavy pipes effortlessly.
- Equipped with a hydraulically controlled winch with a drum diameter of 324 mm and a wire rope capacity of 59.6 m (16 mm wire rope).
- Winch transmission has three speeds for raising and one for lowering, providing precise control.
- Features a full hydraulic counterweight system consisting of nine segments, enhancing stability based on load and terrain.
Operator Comfort and Safety
- Pilot-operated controls ensure smooth and responsive operation, reducing operator fatigue.
- Electronic anti-tipping system enhances safety, especially on uneven terrain.
- Additional safety features include:
- Emergency shut-off
- Single lever control for load and boom manipulation
- Free-fall system
- Vertical boom kick-out
- Anti-two block system
- Complies with CE safety standards, ensuring international safety regulations compliance.
Comparison with Other Pipelayers
| Model | Strengths | Weaknesses |
|---|---|---|
| Caterpillar 561C | Higher lift capacity, robust build, stability | Older model, lacks modern tech |
| John Deere 210G | Fuel-efficient, user-friendly interface | Lower lift capacity than 561C |
| Komatsu PC200-8 | Comfortable cab, good visibility | Larger footprint, less maneuverability |
Acquiring a Caterpillar 561C Pipelayer
Authorized Caterpillar Dealers
Boyd CAT is the authorized Caterpillar dealer in Evansville, Indiana. Contact details:
- Phone: (812) 425-4651
- Website: boydcat.com
Used Caterpillar 561C Pipelayers for Sale
- Finding a used Caterpillar 561C can be challenging due to its age.
- Estimated pricing for a used Caterpillar 561C ranges from €27,500 to €28,500, depending on condition and year.
Rental Options
- For short-term projects, renting a 561C is an option.
- Estimated monthly rental price: $6,500.
Financing Options
- Caterpillar Financial Services offers loans and leasing with flexible terms.
- Other lenders, such as banks and credit unions, provide financing options.
Inspection and Maintenance
- Inspect the engine: Check for blow-by, leaks, and functionality.
- Check hydraulics: Look for leaks and test lifting functions.
- Examine undercarriage: Assess wear on tracks, rollers, and sprockets.
- Test the winch: Ensure smooth operation and check cable condition.
Conclusion
The Caterpillar 561C Pipelayer remains a reliable and robust choice for pipeline construction and maintenance. While it lacks modern technological advancements, it compensates with high lift capacity, durability, and ease of maintenance.
