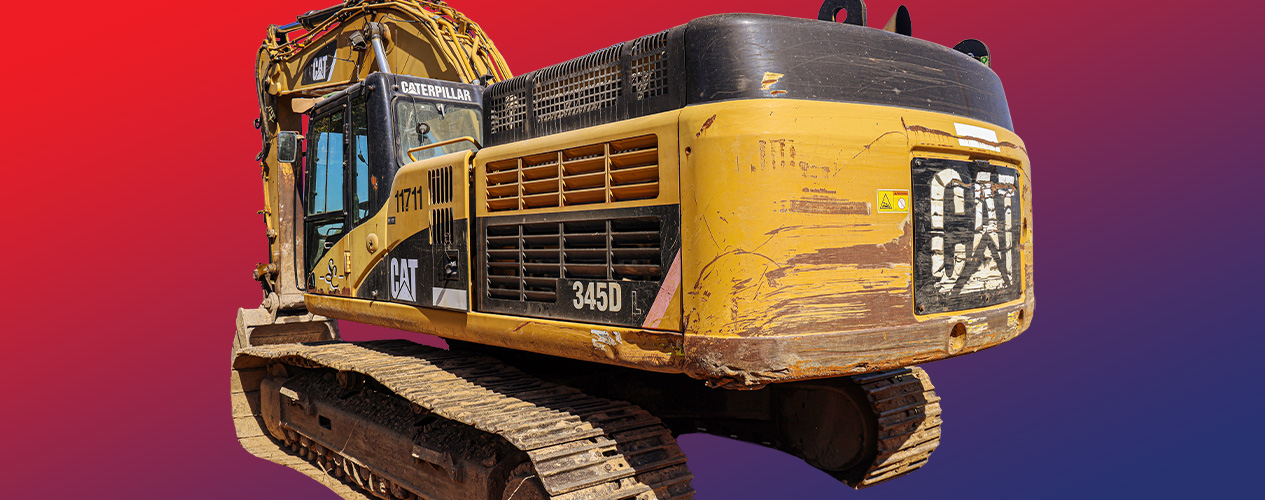

Caterpillar 345D L Hydraulic Excavator

Caterpillar 345D L Hydraulic Excavator

The Caterpillar 345D L hydraulic excavator is a powerful and versatile machine designed for heavy-duty digging and lifting tasks. Introduced as a replacement for the 345C L, this model boasts a range of improvements and features aimed at enhancing performance, efficiency, and operator comfort. Notably, the 345D L features an 18% increase in horsepower and a 10% improvement in fuel efficiency compared to its predecessor.

Specifications

Specification Value
Engine ModelCat® C13 ACERT™
Net Flywheel Power380 hp (283 kW)
Operating Weight44,970 kg
Maximum Travel Speed4.7 km/h
Maximum Reach11.7 m
Maximum Digging Depth7.6 m
Maximum Bucket Capacity5 yd³ (3.8 m³)

Engine and Emissions

The Cat® C13 ACERT™ engine in the 345D L meets U.S. EPA Tier 3 emissions standards while delivering increased power and fuel efficiency. Compared to the 345C L, this model features:

  • 18% increase in horsepower for greater productivity.
  • ACERT Technology optimizing combustion for fuel savings.
  • Mechanical Unit Fuel Injection (MEUI) System for improved fuel atomization.
  • Electronic Control Module (ADEM™ A4) for real-time engine monitoring.
  • Optional Cold Weather Starting Kit for enhanced performance in low temperatures.

Hydraulic System

The hydraulic system is designed for reliability and precise control, featuring:

  • Variable displacement axial piston hydraulic pumps for maximum efficiency.
  • Independent swing hydraulic pump for increased productivity.
  • Cross-sensing system that allows full hydraulic pump capacity utilization.
  • Hydraulic cylinder snubbers for reducing shock and wear.
  • Optional Tool Control System for fine-tuned pressure settings for attachments.

Undercarriage Options

The 345D L offers three undercarriage configurations:

  • Fixed Gauge: Ideal for transport in weight-sensitive environments.
  • Variable Gauge: Increased track and ground clearance for added stability.
  • Wide Variable Gauge: Enhanced lifting capacity for heavier workloads.

Operator Station

The operator station is designed for comfort and efficiency, featuring:

  • Spacious cab with excellent visibility and openable skylight.
  • Viscous rubber-mounted cabin to minimize noise and vibration.
  • High-back heated air-suspension seat for ergonomic comfort.
  • Adjustable pilot-operated control levers for smooth operation.
  • Full-color LCD monitor supporting 27 languages.

Buckets and Attachments

The Caterpillar 345D L supports various bucket types for different applications:

  • General Purpose (GP) Buckets: For low-impact, moderately abrasive materials.
  • Heavy Duty (HD) Buckets: Optimized for mixed dirt, clay, and rock.
  • Heavy-Duty Power (HDP) Buckets: Designed for maximizing breakout force.
  • Heavy Duty Rock (HDR) Buckets: Ideal for shot rock and granite.

Applications

The 345D L is suitable for a variety of tasks, including:

  • Excavation: Digging trenches, foundations, and basements.
  • Mass Excavation: Moving large volumes of earth.
  • Demolition: Dismantling structures with attachments.
  • Quarrying and Mining: Extracting and loading materials.

Technology and Monitoring

The AccuGrade™ Grade Control System enhances accuracy and efficiency with real-time excavation guidance, resulting in:

  • Reduced survey costs and over-excavation.
  • Increased productivity by guiding operators.

The Product Link 321 telematics system allows remote monitoring of:

  • Machine location
  • Operating hours
  • Fuel consumption
  • Maintenance needs

Safety Features

Safety is a priority in the 345D L, with features including:

  • ROPS Cab: Provides protection in case of rollover.
  • Fire Suppression System: Automatic AFFF fire suppression.
  • Guard Protection: Protects powertrain and undercarriage.
  • Auxiliary Work Lighting: Improved visibility for night operations.

Serviceability and Maintenance

The Caterpillar 345D L is designed for easy maintenance, featuring:

  • Extended service intervals for oil and filters.
  • Centralized service points for reduced maintenance time.
  • User-friendly electronic diagnostics for quick troubleshooting.

Conclusion

The Caterpillar 345D L is a highly efficient and durable hydraulic excavator with improved power, fuel efficiency, and operator comfort. Whether used in construction, mining, or excavation, it remains a valuable asset for high-performance applications.
