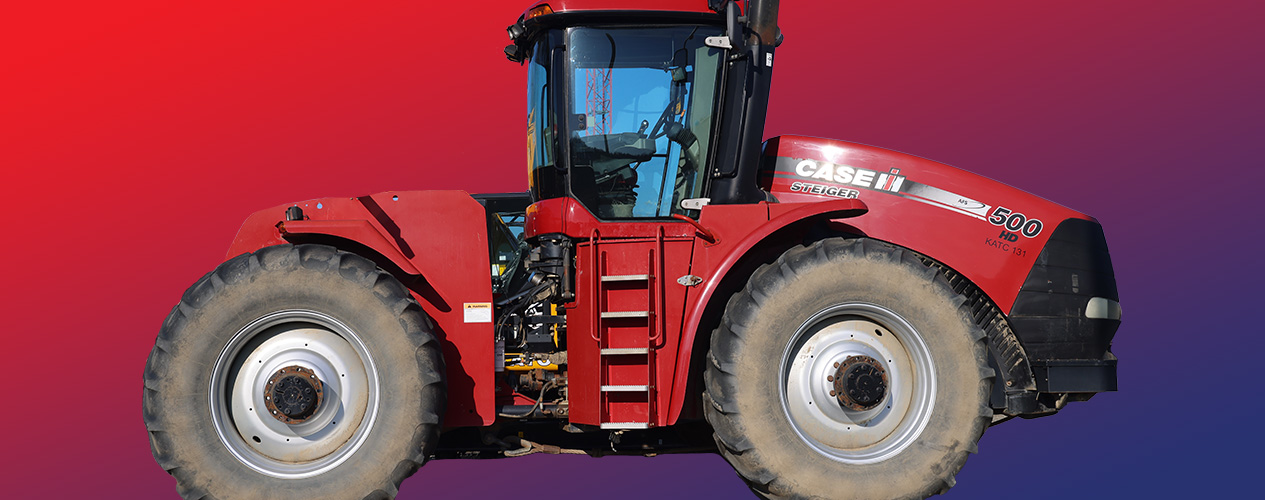

Case IH Steiger 500 Tractor

Case IH Steiger 500 Tractor

The Case IH Steiger 500 is a high-powered and versatile tractor designed for large-scale farming operations. With its impressive horsepower, advanced technology, and multiple configurations, it has become a top choice for farmers seeking a reliable and efficient tractor.

Engine and Drivetrain

Engine

The Steiger 500 is equipped with a 12.9L Tier 4 B/Final engine, manufactured by FPT Industrial. This six-cylinder engine delivers:

  • Rated Horsepower: 500 hp (373 kW)
  • Maximum Horsepower: 550 hp (410 kW)
  • Bore: 5.31 inches (135 mm)
  • Stroke: 5.91 inches (150 mm)
  • Fuel System: High-pressure common rail
  • Turbocharger: Wastegate turbocharger with air-to-air aftercooling

To meet Tier 4 B/Final emission standards, the engine features Selective Catalytic Reduction (SCR) technology with Diesel Exhaust Fluid (DEF). Additional emission control components include:

  • Cleanup Catalyst (CUC)
  • Diesel Oxidation Catalyst (DOC)

Fuel and DEF Capacities

  • Fuel Tank Capacity: 310 gallons (1,173 liters)
  • DEF Tank Capacity: 85 gallons (322 liters)

Transmission

The Case IH Steiger 500 offers two transmission options:

  • 16-speed full powershift transmission with Diesel Saver™ APM technology
  • CVXDrive continuously variable transmission (CVT) for stepless speed control

The powershift transmission provides 16 forward and 2 reverse speeds, ensuring smooth transitions under load. The CVXDrive transmission enables efficient speed adjustments without sacrificing performance.

Performance

  • Drawbar Horsepower: 543.43 hp
  • PTO Horsepower: 546.6 hp

Track and Tire Configurations

The Steiger 500 is available in multiple configurations:

Quadtrac

  • Four independent, oscillating tracks for superior traction and flotation
  • Reduces soil compaction and ensures even weight distribution
  • Eliminates ridging and berming in turns
  • Self-adjusting track tensioning system reduces maintenance
  • Track widths available: 30 to 36 inches (762 to 914 mm)

Rowtrac

  • Combines wheeled and track benefits for row crop applications
  • Maintains narrower profile while reducing soil compaction

Wheeled

  • Equipped with Increased Flexion tires
  • Allows lower air pressure, reducing soil compaction
  • Provides a smoother ride for reduced operator fatigue

Scraper Configuration

The Steiger 500 is also available in a scraper configuration, designed for heavy-duty earthmoving. Features include:

  • 20,000 lb scraper drawbar
  • Anti-vandalism lockdown package
  • Differential lockdown for better traction
  • Optional engine brake for enhanced downhill control

Operator Comfort

Suspended Cab

The 4-point cab suspension system isolates the operator from chassis-created vibrations, reducing fatigue and improving ride comfort.

Cab Features

  • Optimized storage and visibility
  • Climate control and heated seats
  • Multiple power sources for charging electronic devices

Hydraulics and Hitch

  • Hydraulic Flow Rate: Up to 113 gallons per minute
  • Lift Capacity: Up to 20,000 lbs
  • Equipped with a Category 4N quick coupler 3-point hitch
  • Supports up to eight hydraulic remote valves

Comparison with Competitors

The Case IH Steiger 500 competes with models like the John Deere 9510RT. Advantages include:

  • Higher built-in weight, reducing the need for added ballast
  • More track and tire options

Reviews and User Feedback

The Steiger 500 has received positive reviews, with users praising its:

  • Power and performance
  • Fuel efficiency
  • Reliability

Some users reported fuel and DEF-related issues, but overall, the tractor is known for its durability and high performance.

Conclusion

The Case IH Steiger 500 is a high-powered, fuel-efficient, and technologically advanced tractor built for demanding agricultural tasks. With multiple configuration options, innovative features, and high horsepower, it remains a top choice for large-scale farming.
