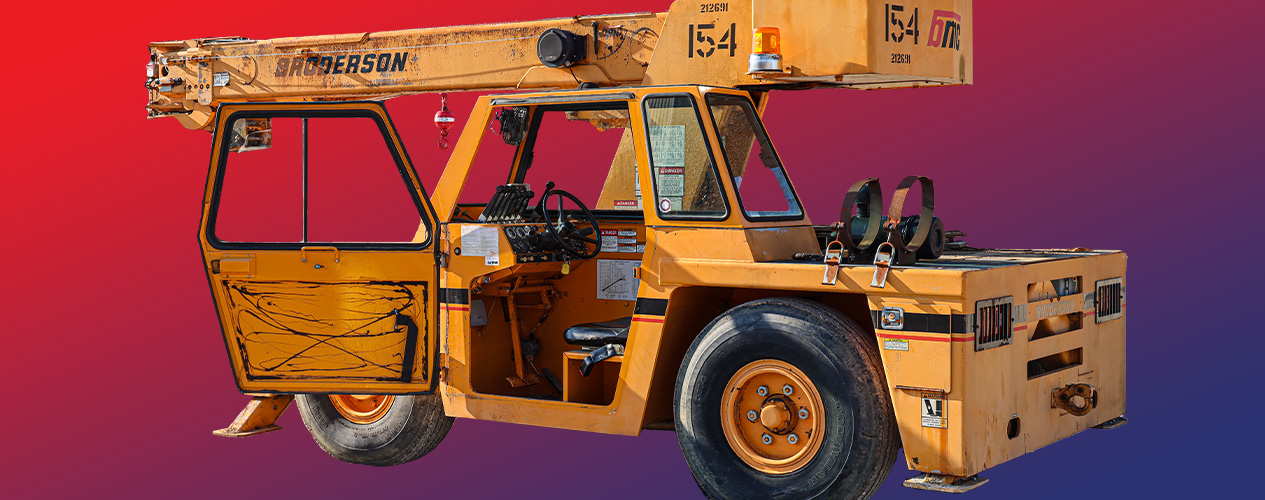

Broderson IC-80-3F Carry Deck Crane
The Broderson IC-80-3F Carry Deck Crane is a compact and versatile crane widely used in industrial and maintenance applications. Its small size, four-wheel drive, and maneuverability make it an ideal choice for lifting and transport tasks in confined spaces. This document provides an in-depth look at its specifications, features, applications, pricing, and availability.
Specifications
| Category | Specification | Measurement |
|---|---|---|
| Dimensions | Height | 7'3" |
| Width | 6'6" | |
| Weight | 16,930 lbs | |
| Lifting Capacities | Max Capacity | 9 US tons |
| Pick and Carry Capacity | 11,400 lbs | |
| Drawbar Pull (First) | 15,500 lbs | |
| Boom | Boom Length | 30 ft |
| Jib Extension | 16 ft | |
| Sheave Height (with boom extension) | 46'8" | |
| Horizontal Reach | 40'0" | |
| Engine | Make | GM and Kubota |
| Model | 3.0L (GM) & V3307 EPA (Tier 4i) (Kubota) | |
| Type | Gas, Dual Fuel (GM) or Diesel (Kubota) | |
| Horsepower | 59 HP (GM) / 74.3 HP (Kubota) | |
| Displacement | 181 CID (GM) / 203.27 CID (Kubota) | |
| Fuel Tank Capacity | 17.6 Gallons | |
| Hydraulics | Capacity | 25 Gallons |
| Pump | Tandem pump, direct-driven, rated at 16 & 32 GPM | |
| Brakes | Service Brakes | Four-wheel hydraulic wet disc brakes |
| Parking Brake | Disc type |
Key Features and Benefits
- Compact Size: Enables operation in confined spaces.
- Four-Wheel Drive & Steering: Provides excellent traction and maneuverability.
- Powershift Transmission: Ensures smooth and precise control.
- Fully Hydraulic Controls: Allows for reliable and responsive crane operation.
- Independent Outrigger Controls: Enhances stability on uneven ground.
- Turret Mounted Planetary Gear Hoist: Provides a bare drum line pull of 10,000 lbs at a line speed of 110 FPM.
- Multiple Steering Modes: Includes rear-wheel, four-wheel round, and crab steering for maximum flexibility.
Cargo Deck
- Deck Area: 53 square feet (5 m²)
- Capacity: Maximum of 14,000 lbs when load is centered over axles.
- Storage: Includes a front storage box.
- Lifting Rings: Located at each corner for easy lifting of the crane.
Outriggers
- Construction: Box beam for enhanced durability.
- Controls: Independent controls for precise leveling.
- Holding Valves: Direct-connected holding valves for added safety.
- Pad Dimensions: 9 inches x 12 inches
Safety Features
- Rated Capacity Limiter: Prevents overloading with audible and visual warnings.
- Hydraulic Outriggers: Independent leveling and secure positioning.
- Drum Rotation Indicator: Provides tactile feedback for hoisting control.
- Ergonomic Operator Cab: Offers excellent visibility and comfort.
- Wet Disc Brakes: Reliable braking system for enhanced safety.
Applications
- Industrial Applications: Lifting generators, HVAC units, and heavy equipment in plants.
- Maintenance Work: Equipment repair and replacement in warehouses and factories.
- In-Plant Lifting: Ideal for material handling inside industrial settings.
- Shop Crane: Compact design makes it suitable for confined indoor spaces.
Pricing
The price of a Broderson IC-80-3F Carry Deck Crane varies based on condition, year, and features.
- Used Cranes: $15,000 - $100,000
- 2002 Model: $24,500
- 2003 Model: $44,000
Rental Options
The IC-80-3F is also available for rental:
- Daily Rate: $385.00
- Weekly Rate: $800.00
- Monthly Rate: $2,400.00
Authorized Dealers
| Dealer Name | Location | Contact Information |
|---|---|---|
| National Lift Truck Inc | Franklin Park, IL | (630) 480-5153 |
| Stevenson Crane Service | Bolingbrook, IL | (630) 425-7107 |
| Walter Payton Power Equipment | Riverdale, IL | +1 708-467-7286 |
| Kirby-Smith | St. Louis, MO | 12920 Gravois Rd, St. Louis, MO 63127 |
| Scott-Macon Equipment | Texas, Louisiana, Oklahoma | Various locations |
Conclusion
The Broderson IC-80-3F is a compact, versatile, and highly maneuverable carry deck crane that excels in industrial, maintenance, and in-plant applications. Its strong lifting capabilities, advanced safety features, and durable construction make it a reliable choice for professionals. With competitive pricing and rental options, it remains a top choice for businesses needing a cost-effective lifting solution.
